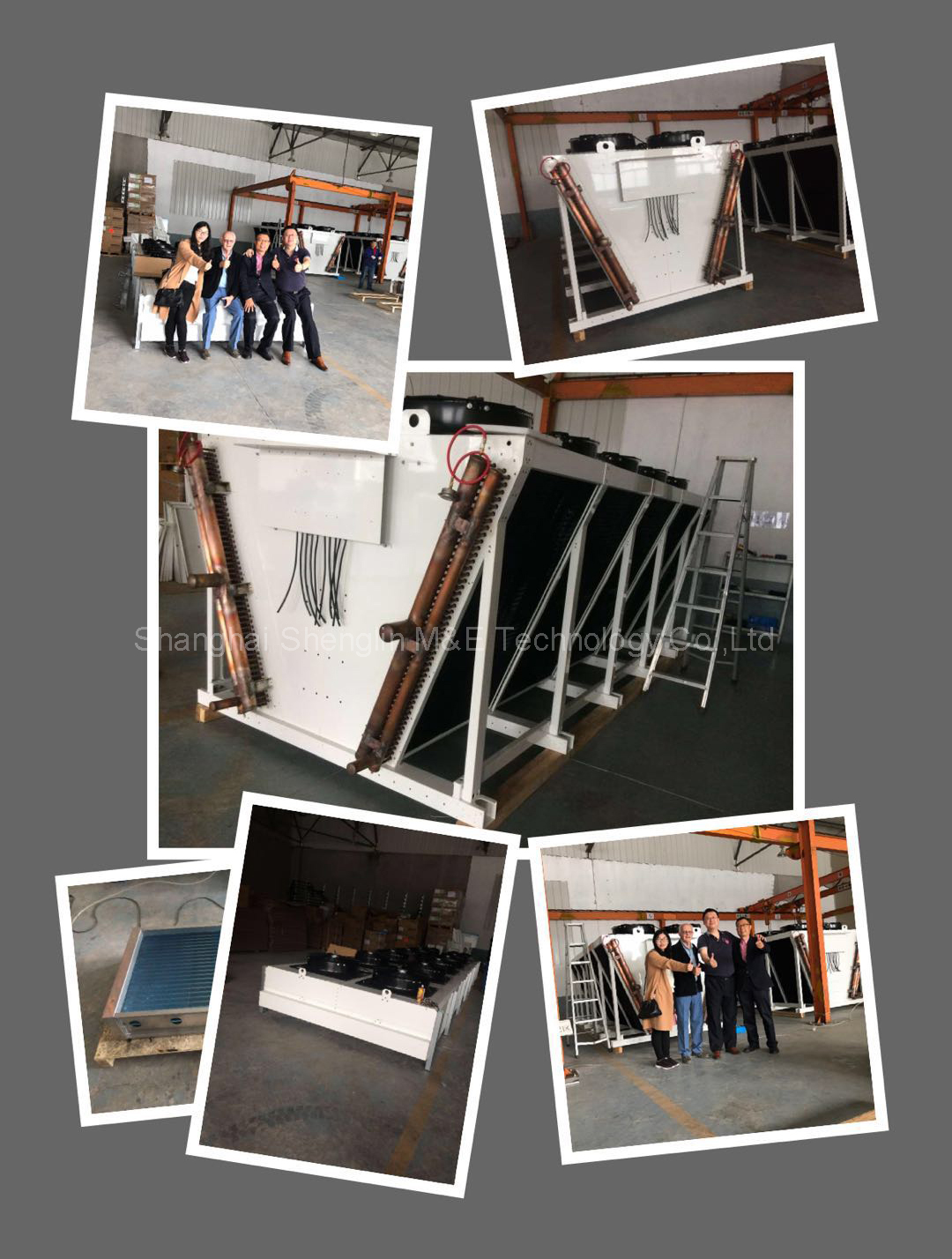

502kW Dry Cooler And 770kW Condenser Finished.-She

502kW Dry Cooler And 770kW Condenser Finished.

Dry cooler and condenser  for Mauritius client. Here are some spec.

Dry cooler
Country: Mauritius client
Application: supermarket and will match chiller use.
Heat transfer capacity: 502kW
Cooling medium: water
Inlet air temp.: 32℃
Inlet medium temp.: 42℃
Outlet medium temp.: 37℃
Medium volume: 88m3/h
Material: copper tube aluminum fin and galvanized steel frame, RAL9010 powder coating.
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand, air volume: 20228m3/h

Condenser
Country: Mauritius client
Application: supermarket.
Heat transfer capacity: 770kW
Cooling medium: R134A
Cooling area: 1446m2
Material: copper tube aluminum fin and galvanized steel frame, RAL9010 powder coating.
Supply power: 380V/3P/50Hz

Fan brand: Chinese brand, air volume: 167179m3/h
