Air Dry Coolers

Brief Description

• Unique floating coil design avoids leakage caused by thermal expansion and contraction

• Staggered fin pattern design and corrugated fin enhance airflow turbulence
• Inner-grooved copper tube increase heat transfer area and enhance heat transfer
• Optimized flow pass design to ensure fully heat exchange with refrigerant
• Equipped with 2nd generation owl-wing fan motor as standard. It features a low noise level, large volume flow, and low energy consumption. Ready for dual speed connection
• Outdoor type powder coated casing made of galvanized sheet metal and stainless steel bolts provide high resistance to corrosion

Optional features:
• EC variable-speed fan motor, to save great energy
• ZAplus/AxiTop for greater volume flow and extreme silence
• Adiabatic system significantly  reduces energy consumption in summer
• Epoxy coated or hydrophilic aluminum fin suitable for coastal or high corrosion area
• Fluid dry cooler
• Clean stainless steel tube and aluminum fin coil for cooling deionized water


Product Description

Technical parameter

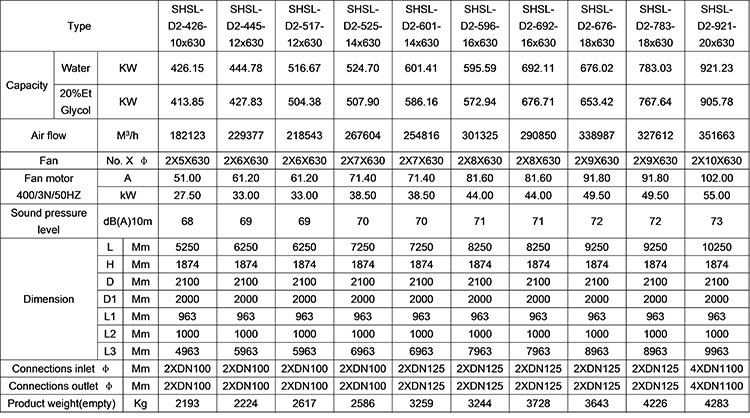

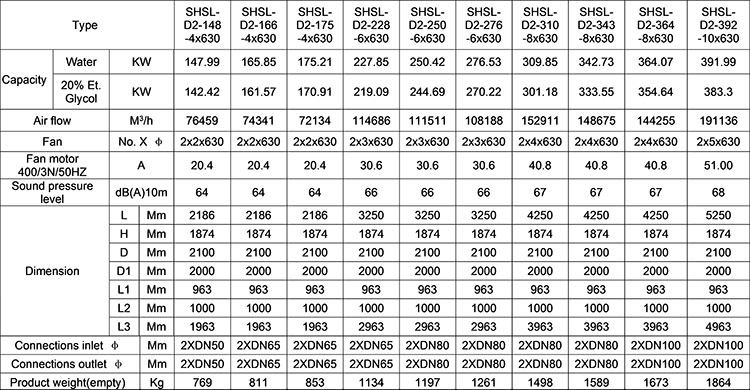

Dry cooler SHSL-D2 series parameter(fin space 2.1mm)
