EVI Heat Pump

Brief Description
Easy installation air source heat pump
EVI Scroll compressor, strong and reliable, high COP performance at low ambient
Operating steadily under -25°C~45°C ambient temp , Maximum outlet water temperature can reach 60°C.

Product Description

Spec:


EVI Air source heat pump

MODEL

Unit

SL100D

Rated heating capacity

KW

36

Hot water supply

L/h

800

Average heating input power

KW

9.2

Rated heating input current

A

18

Max outlet water temp

60

COP



4.2

Power

V/Hz

380V/50

Noise

Db(a)

60

Dimension

W*D*H

mm

1450×760×1060

Packing size

W*D*H

mm

1520*800*1230

Unit weight

KG

360

Refrigerant



R407C

Working air temp range



(-25)—45

compressor

Type



EVI Copeland

Air source heat exchanger

Type



Finned heat exchange

Fan Type



axial flow fan

Hot water side heat exchange

Type



Coil heat exchanger

Water flow

L/H

10000L/h

Water pressure down

Kpa

54

Pipe size

DN

40

EVI Air source heat pump

MODEL

Unit

SL200D

Rated heating capacity

KW

72

Hot water supply

L/h

1590

Average heating input power

KW

18.2

Rated heating input current

A

35

Max outlet water temp

60

COP



4.5

Power

V/Hz

380V/50

Noise

Db(a)

65

Dimension

W*D*H

mm

2040×1100×2000

Packing size

W*D*H

mm

2080×1150×2130

Unit weight

KG

650

Refrigerant



R407C

Working air temp range



(-25)—45

compressor

Type



EVI Copeland

Air source heat exchanger

Type



Finned heat exchange

Fan Type



axial flow fan

Hot water side heat exchange

Type



Coil heat exchanger

Water flow

L/H

20000L/h

Water pressure down

Kpa

60

Pipe size

DN

50

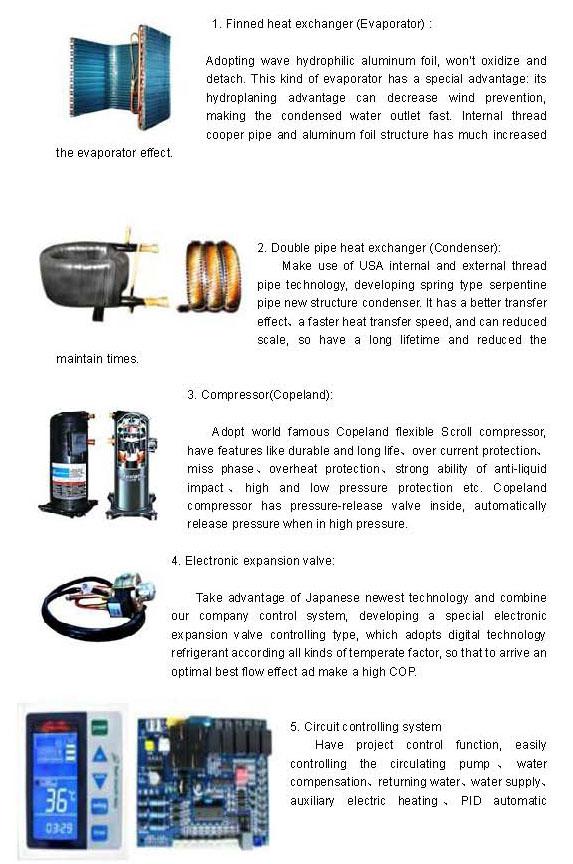

Spare parts:
