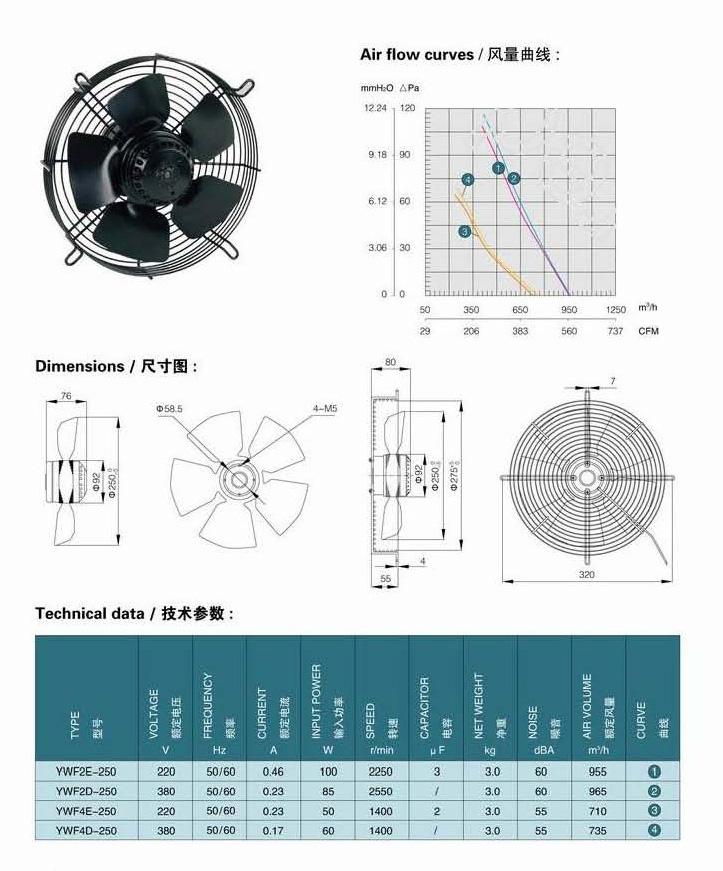

Axial Fan

Brief Description

YWF series axial fan motors are external rotor fan motors with characteristics of compact structure, convenient installation, reliable operation, low noise, energy-saving, and high efficiency.

They are divided into single-phase asynchronous capacitor fan motor and three-phase asynchronous fan motor which are widely used in condensers, evaporators, and other refrigeration equipment and ventilating cycle areas.

The insulation class of the YWF series axial fan motors is B, and the protection class of that is IP54. Each of the motors has a thermal protector in its winding.

Voltage/Frequency: The voltage of the single-phase motor is 220V/50Hz, and that of the three-phrase motor is 380V/50Hz. We can also supply other fan motors with different voltages and frequencies according to clients' requirements.

The standard length of the electrical wire on the fan is 1.5m, and we can also provide a connection box to fan motors for clients' choices.

The applicable environment temperature of the fan motors used in condensers is from -30 oC to +60ºC, and that of the fan motors used in evaporators is from -40 oC to 60 oC.

The average working life of motors is more than 30000 hours.

All motors in our factory have attained CE approval in Europe and CC safety certificate in China
