Brazed Plate Heat Exchanger

Brief Description

Standard Materials

●Cover plate: 304 stainless steel

●Connections: 304 stainless steel

●Plate: 304 or 316L stainless steel

●Brazing material: 99.99% copper


Options

Also we can do CO2 high pressure plate heat exchanger.


Product Description

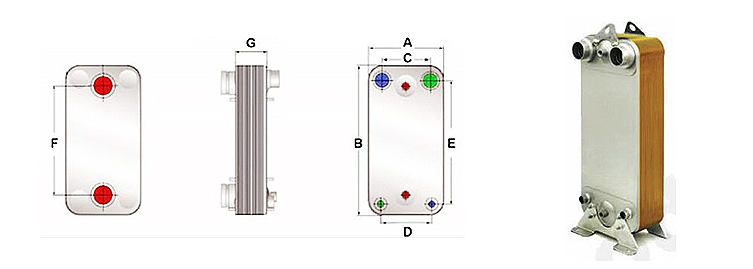

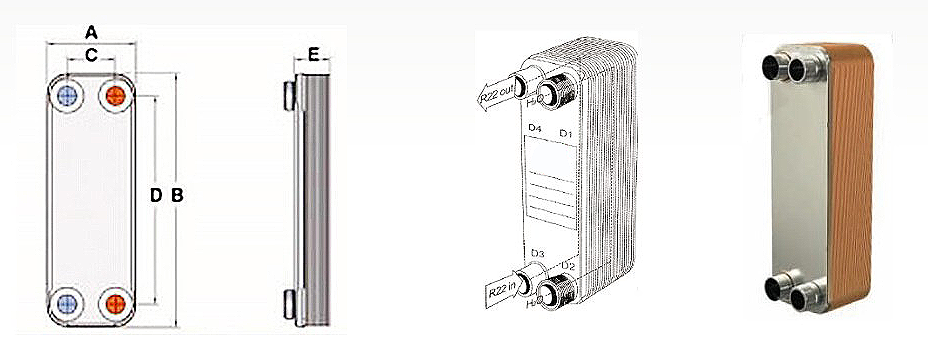

Models

Model

A(mm)

B(mm)

E(mm)

C(mm)

D(mm)

Pressure(Mpa)

Volume(m3/h)

Weight(Kg)

HU12

73

192

9+2.3N

40

154

1.0/3.0

1.8

0.4+0.44N

HU14

88

198

9+2.3N

40

168

3.0/4.5

3.6

0.7+0.06N

HU22

78

317

9+2.4N

42

280

3.0*4.5

3.6

1.0+0.08N

HU26

111

310

10+2.3N

50

250

3.0/4.5

8.1

1.3+0.12N

HU50

111

525

9+2.35N

50

466

3.0/4.5

12.7

2.0+0.23N

HU95

191

616

11+2.35N

92

519

3.0/4.5

39

7.8+0.36N

HU95B

191

616

11+2.35N

92

519

3.0/4.5

39

7.8+0.36N

HU190

307

696

13+2.75N

179

567

2.0

100

15+0.78N

HU200

321

728

13+2.7N

207

624

2.0

100

20+0.65N

HU300

366

1006

20+2.85N

228.5

872

3.5

140

57+1.26N


Model

A(mm)

B(mm)

G(mm)

C(mm)

D(mm)

E(mm)

F(mm)

Pressure(Mpa)

Volume(m3/h)

Weight(Kg)

HU100*

250

488

10+2.15N

157

168

405

408

3.0/4.5

42

6.5+0.37N

4HU210*

321

741

13+2.55N

205.2

224

631

568

3.0/4.5

100

13+0.78N

*Dual System

Application

●District heating/heating and ventilation

●Solar heating and air-conditioning units

●Heating pumps and heat recovering units

●Hydraulic oil units,

●Refrigeration

●Compress air units

●Oil cooler

●Data center cooling
